BK113-200-4

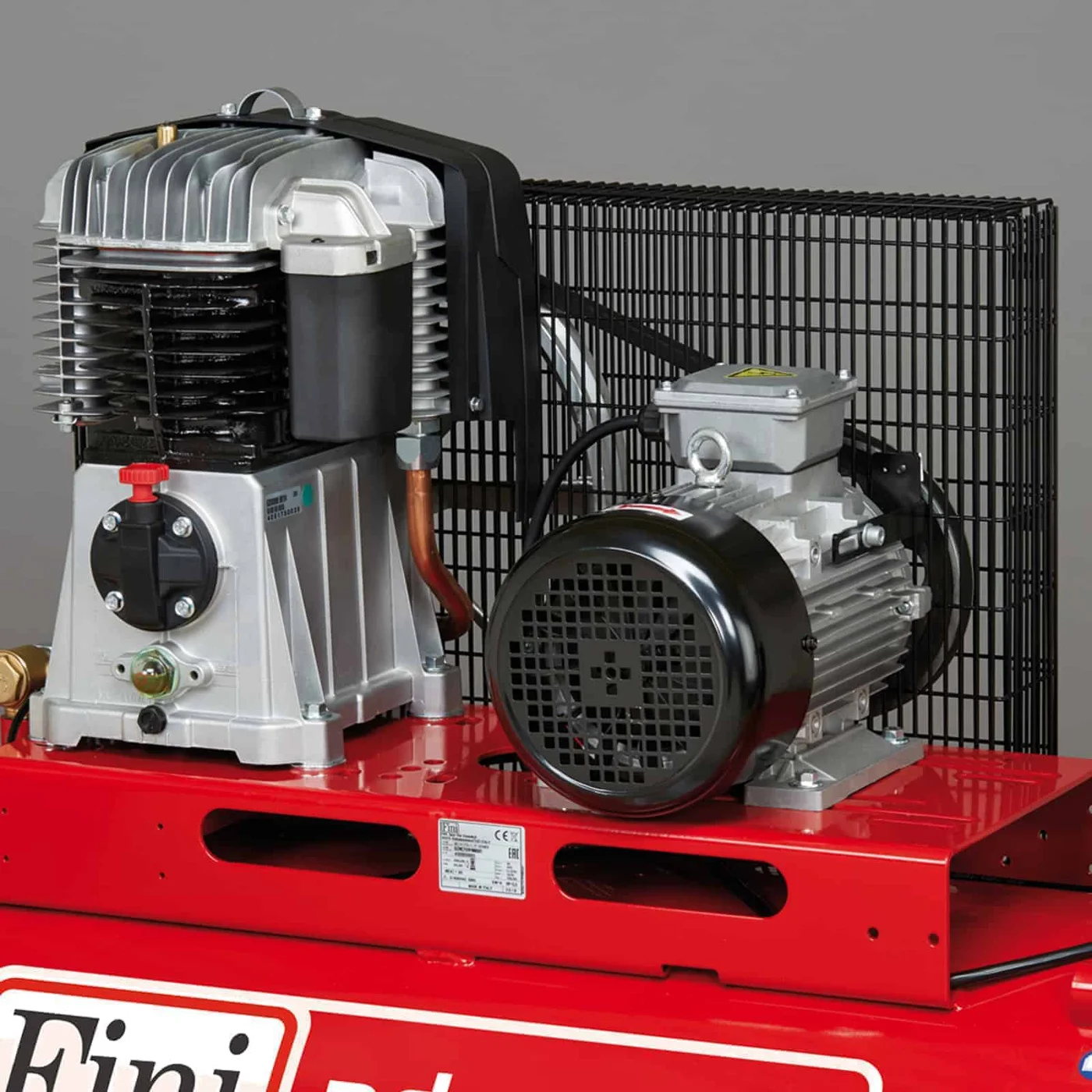

A two-stage three-phase belt compressor designed for intensive use by professionals, it is equipped with a 4 hp pumping unit with highly efficient operation cast iron cylinders with large manifolds for better cooling and robust metal belt covers protecting moving parts. The 200-litre tank for a large air supply, two large wheels and one pivoting wheel, and the convenient full-length, angled handle guarantee stability and easy handling.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
A two-stage three-phase belt compressor designed for intensive use by professionals, it is equipped with a 4 hp pumping unit with highly efficient operation cast iron cylinders with large manifolds for better cooling and robust metal belt covers protecting moving parts. The 200-litre tank for a large air supply, two large wheels and one pivoting wheel, and the convenient full-length, angled handle guarantee stability and easy handling.
Technical specifications
| Product code | BULC601FNM868 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | BK113 |
| Air receiver (l) | 200 |
| Power | 4 Hp / 3 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 2 |
| Air displacement | 430 l/min. / 15,2 c.f.m. |
| R.P.M. | 1310 |
| Voltage / Frequency (Volt / Hz) | 400/50 |
| Type motor | Electric |
| Gross weight | 112,5 kg / 248 lb |
| Packaging dimensions LxWxH (mm) | 1440x480x1130 |
| EAN code | 8017750189116 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
