BK119-270F-11 Diesel

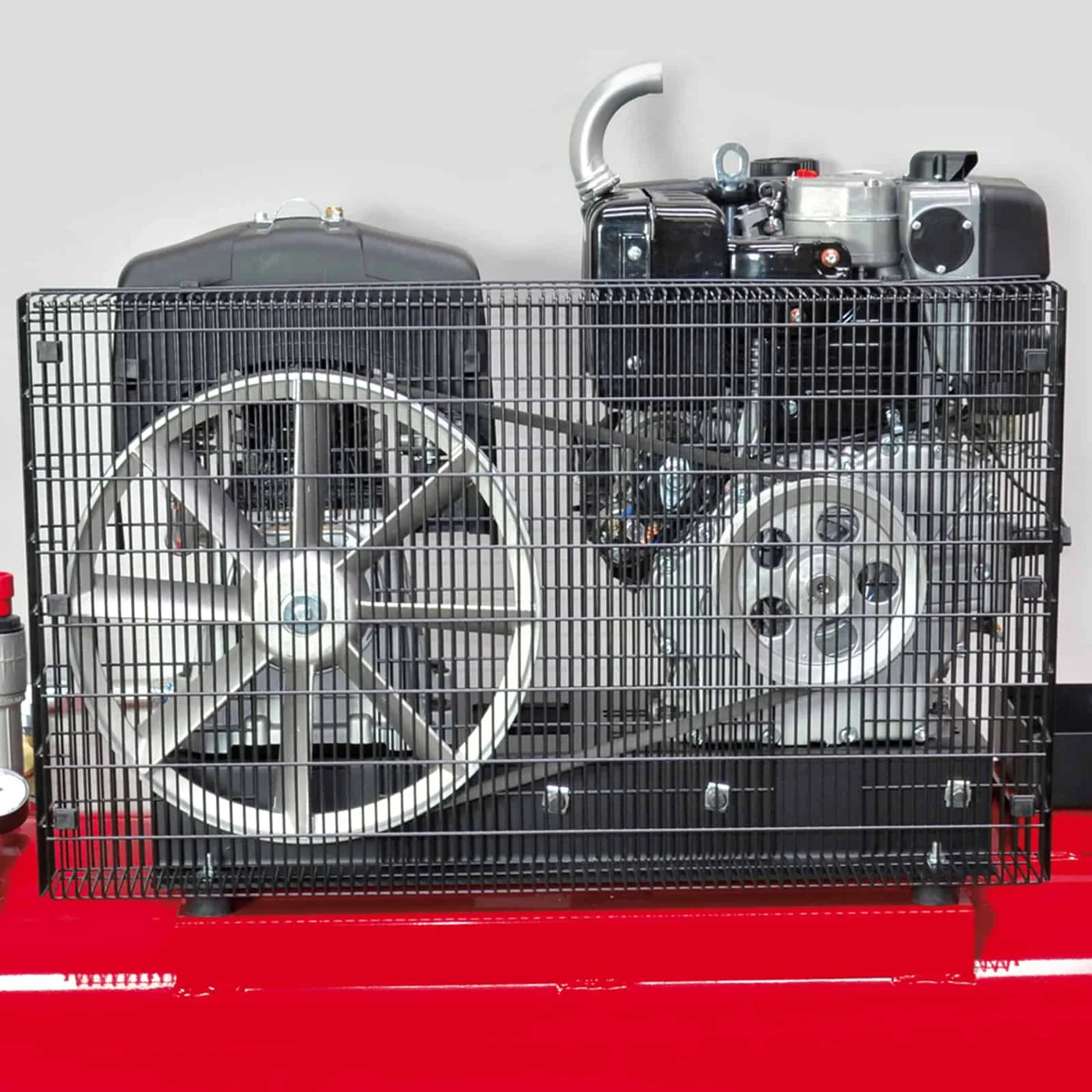

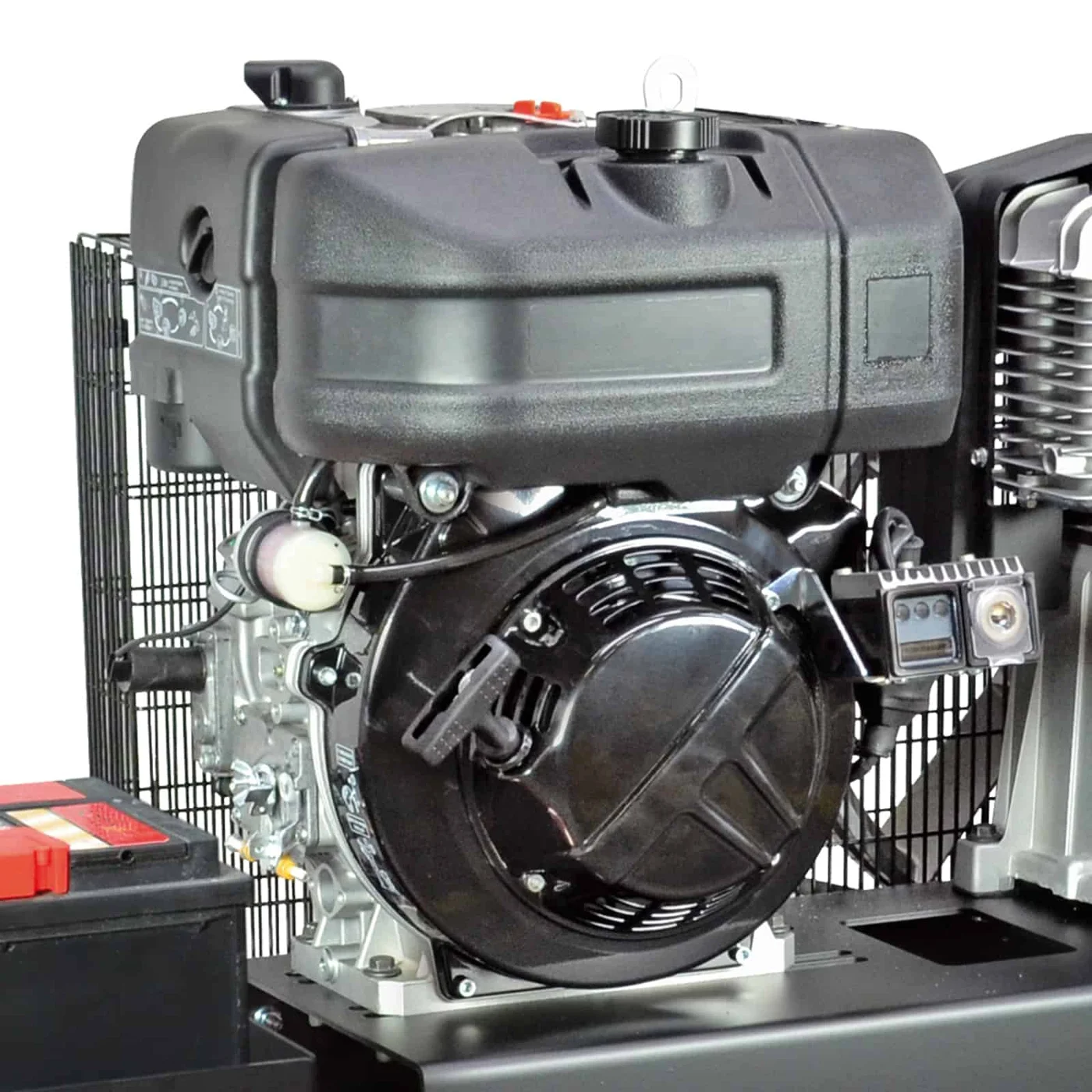

Professional Diesel Motor Compressor suitable for all uses where an electrical power supply is not possible. Can be used with a wide range of air tools requiring high air consumption. Equipped with a powerful 11 hp two-stage pumping unit with a Lombardini Diesel engine and a 270-litre tank for a large air reserve with four anti-vibration feet. The robust metal belt cover protects all moving parts.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Professional Diesel Motor Compressor suitable for all uses where an electrical power supply is not possible. Can be used with a wide range of air tools requiring high air consumption. Equipped with a powerful 11 hp two-stage pumping unit with a Lombardini Diesel engine and a 270-litre tank for a large air reserve with four anti-vibration feet. The robust metal belt cover protects all moving parts.
Technical specifications
| Product code | BRNN9R1FNN194 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | BK119 |
| Air receiver (l) | 270 |
| Power | 11 Hp / 8 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 2 |
| Air displacement | 945 l/min. / 33,3 c.f.m. |
| R.P.M. | 1400 |
| Voltage / Frequency (Volt / Hz) | – |
| Type motor | Thermal |
| Gross weight | 183 kg / 403,4 lb |
| Packaging dimensions LxWxH (mm) | 1640x560x1330 |
| EAN code | 8017750260907 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
