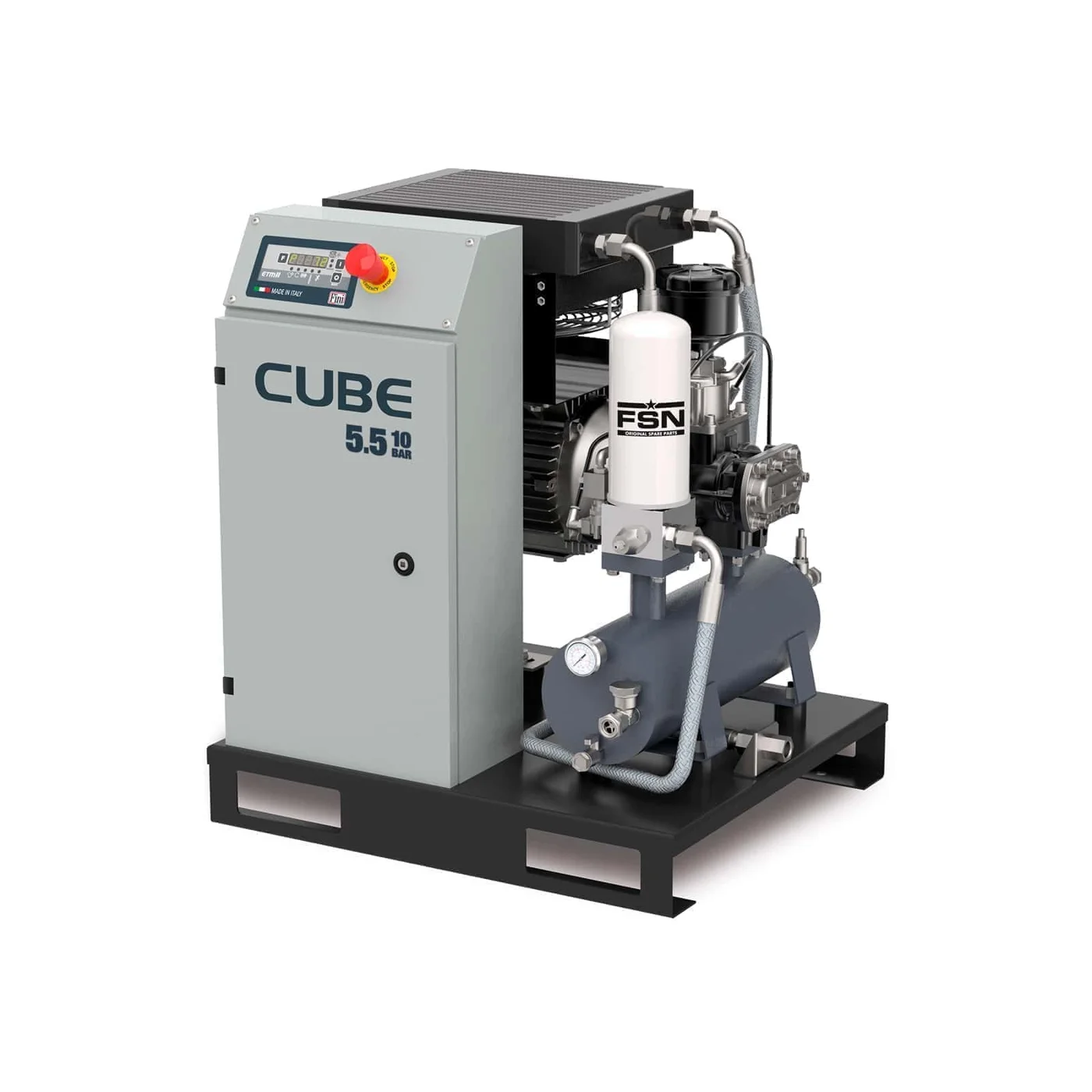

CUBE 7.5-10-500
Three-phase lubricated screw compressor with coaxial transmission for efficiency and reliability. Particularly compact and easy to install and maintain complete with 500 litre storage tank
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Three-phase lubricated screw compressor with coaxial transmission for efficiency and reliability. Particularly compact and easy to install and maintain complete with 500 litre storage tank
Technical specifications
| Product code | V83PO92FNM401 |
|---|---|
| Lubrication | Lubricated |
| Air-end | FS26 |
| Air receiver (l) | 500 |
| Power (kW) | 7,5 |
| Air outflow | 1050 l/min. / 1,05 m3/min. / 37 c.f.m. |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of stages | 1 |
| Sound level (dB(A)) * | 67 |
| Voltage / Frequency (Volt / Hz) | 400/50 |
| Connection (G) | 1/2" |
| Controller | ETMII |
| Type motor | Electric |
| Gross weight (kg) | 279 |
| Net weight (kg) | 239 |
| Packaging dimensions LxWxH (mm) | 2070 x 800 x 1680 |
| Net Dimensions LxWxH (mm) | 2000 x 600 x 1450 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
