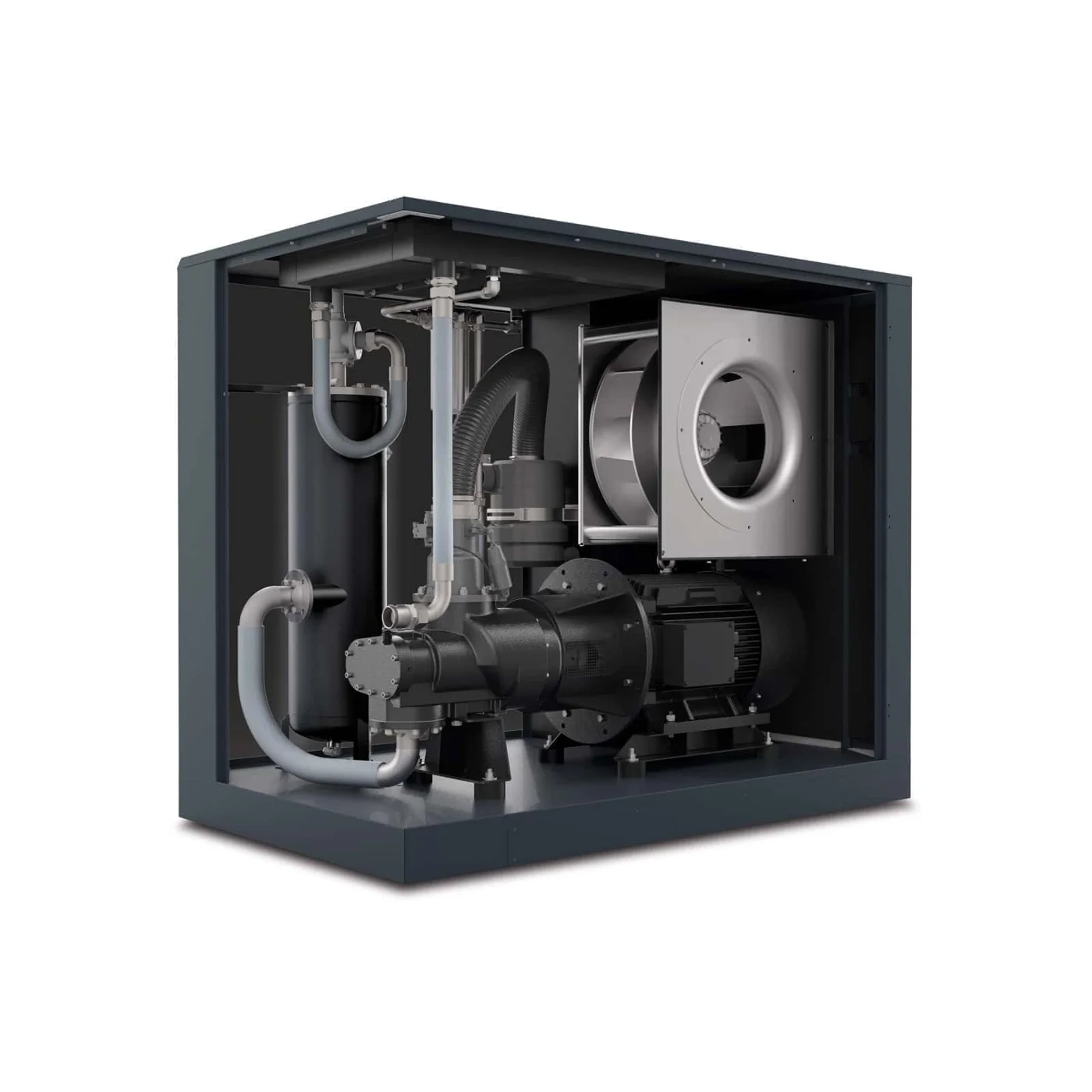

K-MAX 76-08
Lubricated screw compressor with coaxial transmission. Modern and versatile LOGIN electronic controller. Compact and quiet
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Lubricated screw compressor with coaxial transmission. Modern and versatile LOGIN electronic controller. Compact and quiet
Technical specifications
| Product code | V60FA92FNMC60 |
|---|---|
| Lubrication | Lubricated |
| Air-end | FS300 |
| Power (kW) | 75 |
| Air outflow | 13500 l/min. / 13,50 m3/min. / 477 c.f.m. |
| Max. pressure | 7,5 bar / 109 p.s.i. |
| Nr. of stages | 1 |
| Sound level (dB(A)) * | 67 |
| Voltage / Frequency (Volt / Hz) | 400/50 |
| Connection (G) | 2'' |
| Controller | Login |
| Type motor | Electric |
| Energy efficiency | IE4 |
| Gross weight (kg) | 3078 |
| Net weight (kg) | 2880 |
| Packaging dimensions LxWxH (mm) | 2560 x 1660 x 2230 |
| Net Dimensions LxWxH (mm) | 2300 x 1460 x 1960 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
