MICRO SE 2.2-08 M

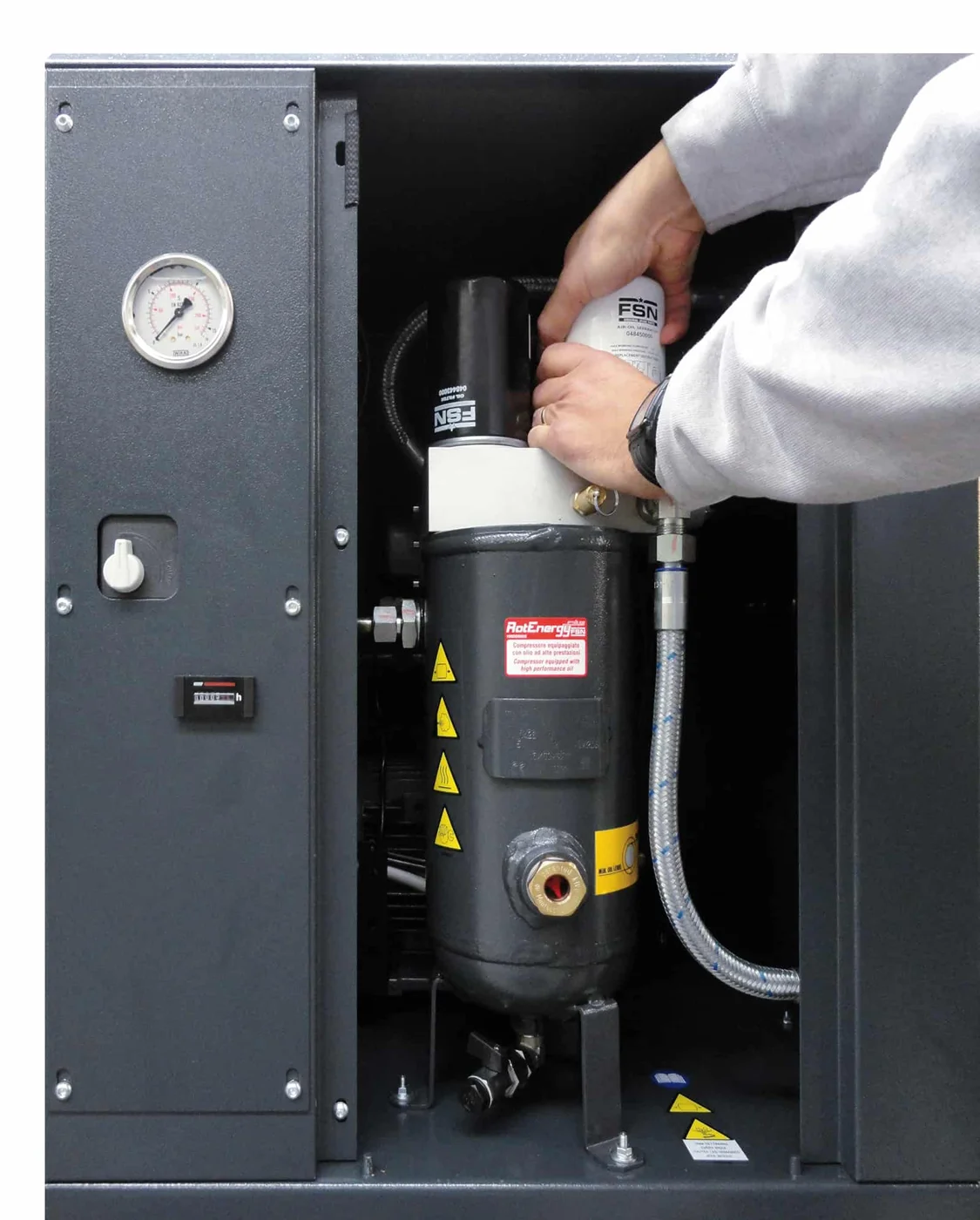

Single-phase lubricated screw compressor with belt transmission with electromechanical control and direct starter. Soundproof cab in hot-dip galvanised sheet metal for maximum silence
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Single-phase lubricated screw compressor with belt transmission with electromechanical control and direct starter. Soundproof cab in hot-dip galvanised sheet metal for maximum silence
Technical specifications
| Product code | V51JU60FNM560 |
|---|---|
| Lubrication | Lubricated |
| Air-end | FS14 |
| Power (kW) | 2,2 |
| Air outflow | 300 l/min. / 0,30 m3/min. / 11 c.f.m. |
| Max. pressure | 8 bar / 116 p.s.i. |
| Nr. of stages | 1 |
| Sound level (dB(A)) * | 58 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Connection (G) | 1/2" |
| Controller | Login |
| Type motor | Electric |
| Gross weight (kg) | 109 |
| Net weight (kg) | 98 |
| Packaging dimensions LxWxH (mm) | 720x670x970 |
| Net Dimensions LxWxH (mm) | 580x480x760 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
