MK102-90V-2M

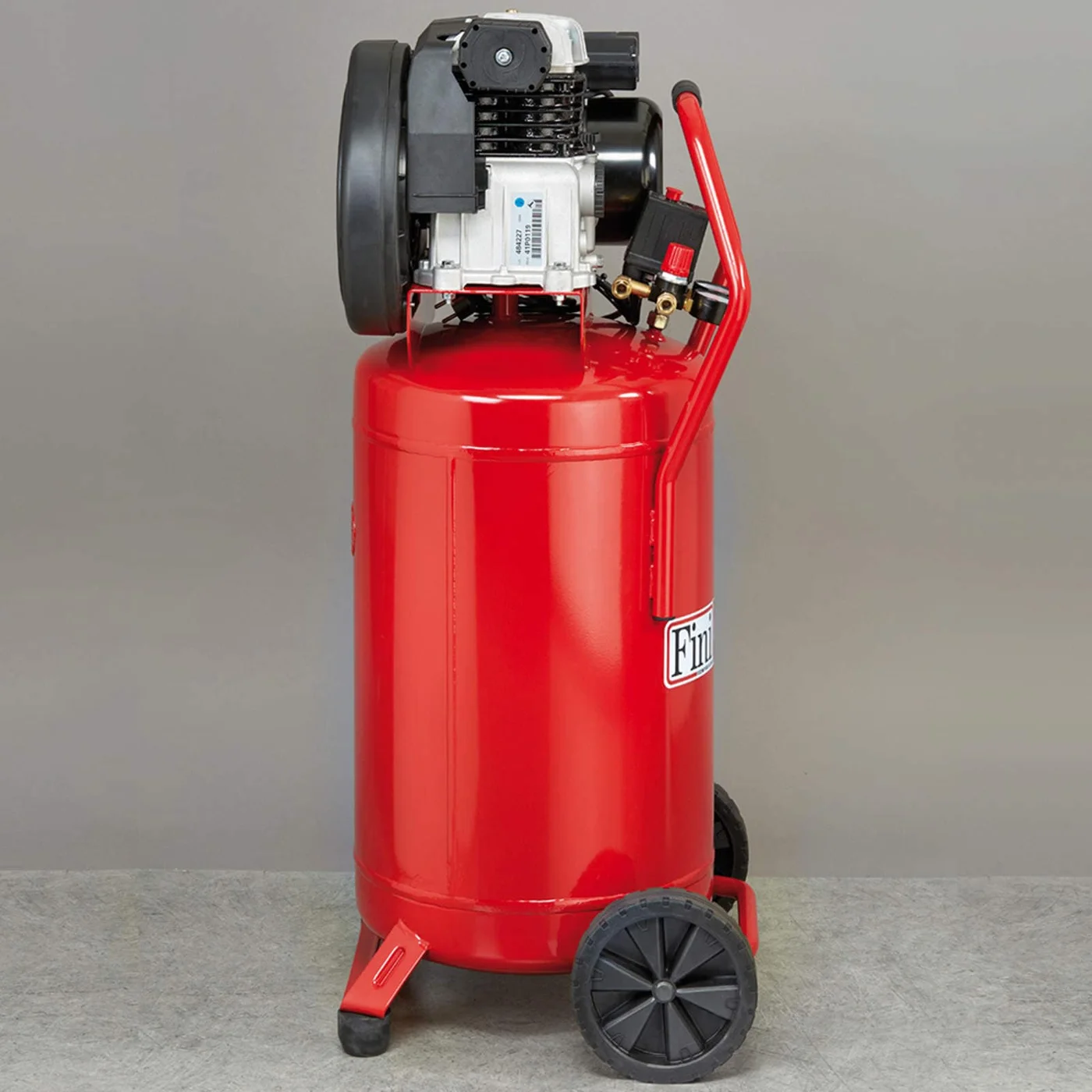

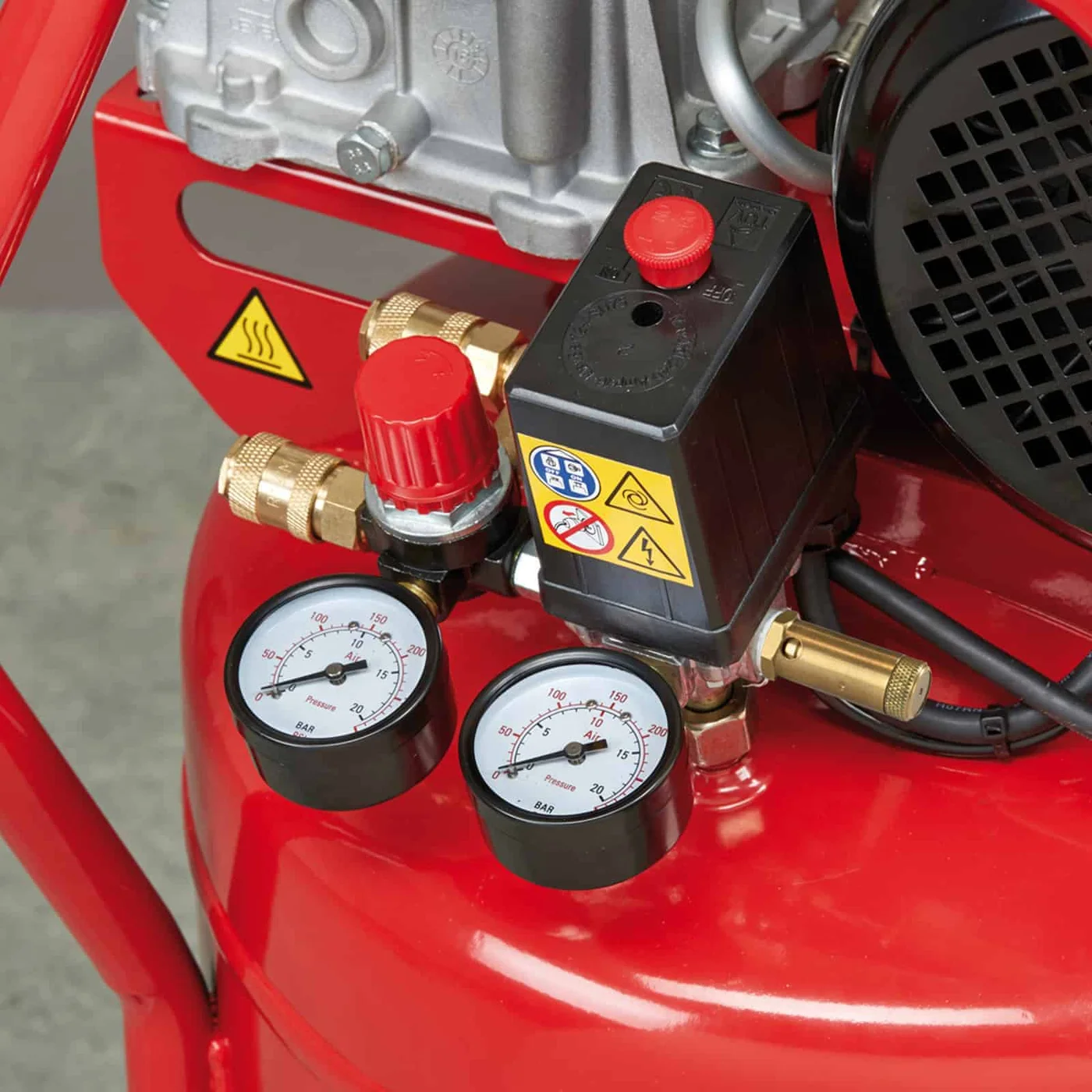

Single stage vertical belt compressor useful for people with problems of space, suitable for all applications requiring high performance. Equipped with a highly efficient 2 hp pumping unit with cast iron cylinders for long life and robust plastic belt guards protecting moving parts. Controls located at the front of the machine ensure easy operation. Easily transportable thanks to its large handle, large wheels and space-saving 90 litre vertical tank.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.


Model overview
Single stage vertical belt compressor useful for people with problems of space, suitable for all applications requiring high performance. Equipped with a highly efficient 2 hp pumping unit with cast iron cylinders for long life and robust plastic belt guards protecting moving parts. Controls located at the front of the machine ensure easy operation. Easily transportable thanks to its large handle, large wheels and space-saving 90 litre vertical tank.
Technical specifications
| Product code | BMGY404FNN551 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | MK102 |
| Air receiver (l) | 90 |
| Power | 2 Hp / 1,5 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 2 |
| Air displacement | 235 l/min. / 8,3 c.f.m. |
| R.P.M. | 1040 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 66 kg / 145,5 lb |
| Packaging dimensions LxWxH (mm) | 605x500x1135 |
| EAN code | 8017750263977 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
