Shuttle MK236 Honda

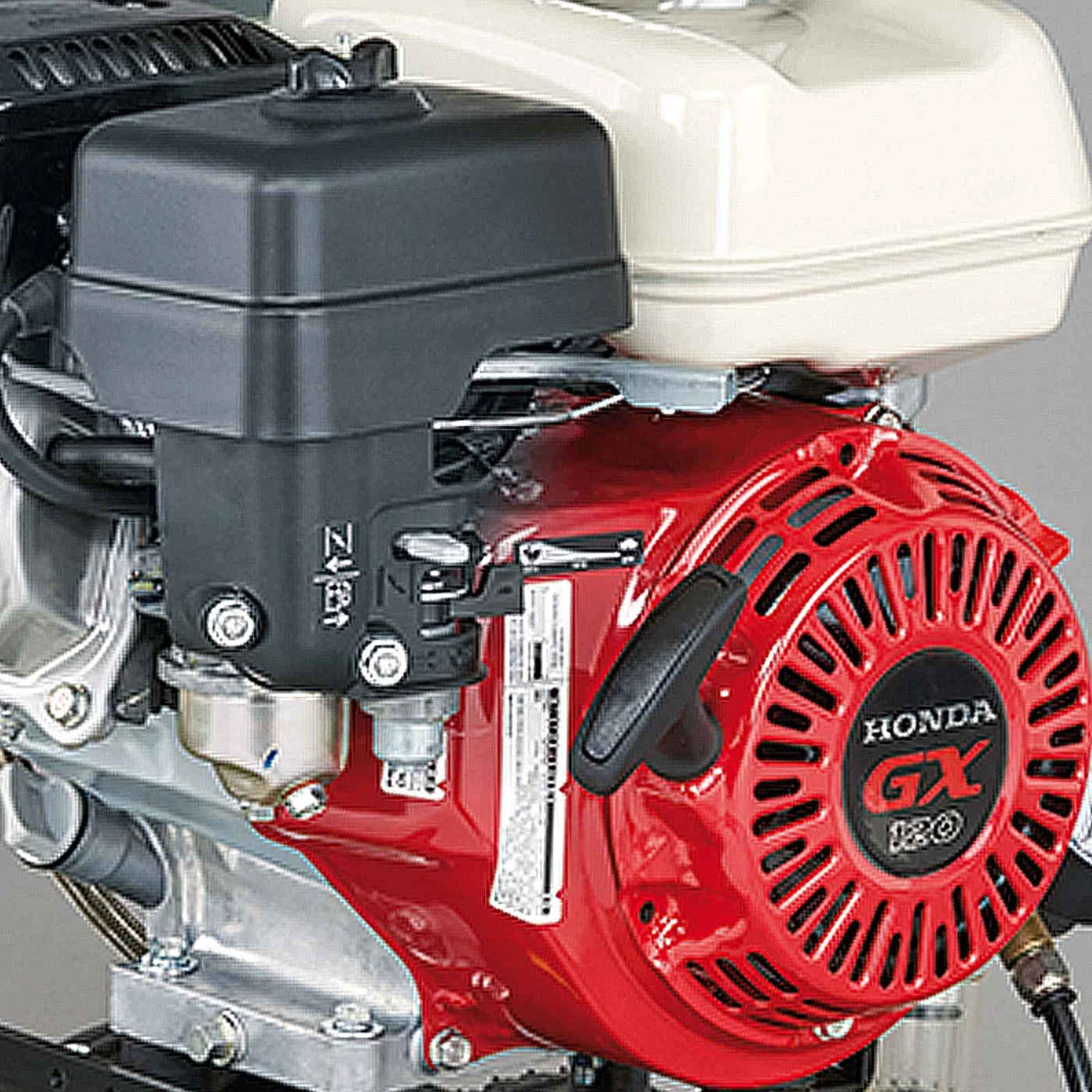

Professional petrol-driven motor compressor suitable for all uses where an electric power supply is not possible. The Honda combustion engine is fully protected by the tubular structure with built-in handle for easy transportation. Stable when working thanks to four suction cup feet.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Professional petrol-driven motor compressor suitable for all uses where an electric power supply is not possible. The Honda combustion engine is fully protected by the tubular structure with built-in handle for easy transportation. Stable when working thanks to four suction cup feet.
Technical specifications
| Product code | FMAA6P1FNN427 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | MK236 |
| Air receiver (l) | 3,2 |
| Power | 5 Hp / 3,7 kW |
| Max. pressure | 7 bar / 102 p.s.i. |
| Nr. of cylinders | 1 |
| Air displacement | 235 l/min. / 8,3 c.f.m. |
| R.P.M. | 3000 |
| Voltage / Frequency (Volt / Hz) | – |
| Type motor | Thermal |
| Gross weight | 29,2 kg / 64,4 lb |
| Packaging dimensions LxWxH (mm) | 540x420x500 |
| EAN code | 8017750264028 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
