Siltek tb 50/1,5 hp

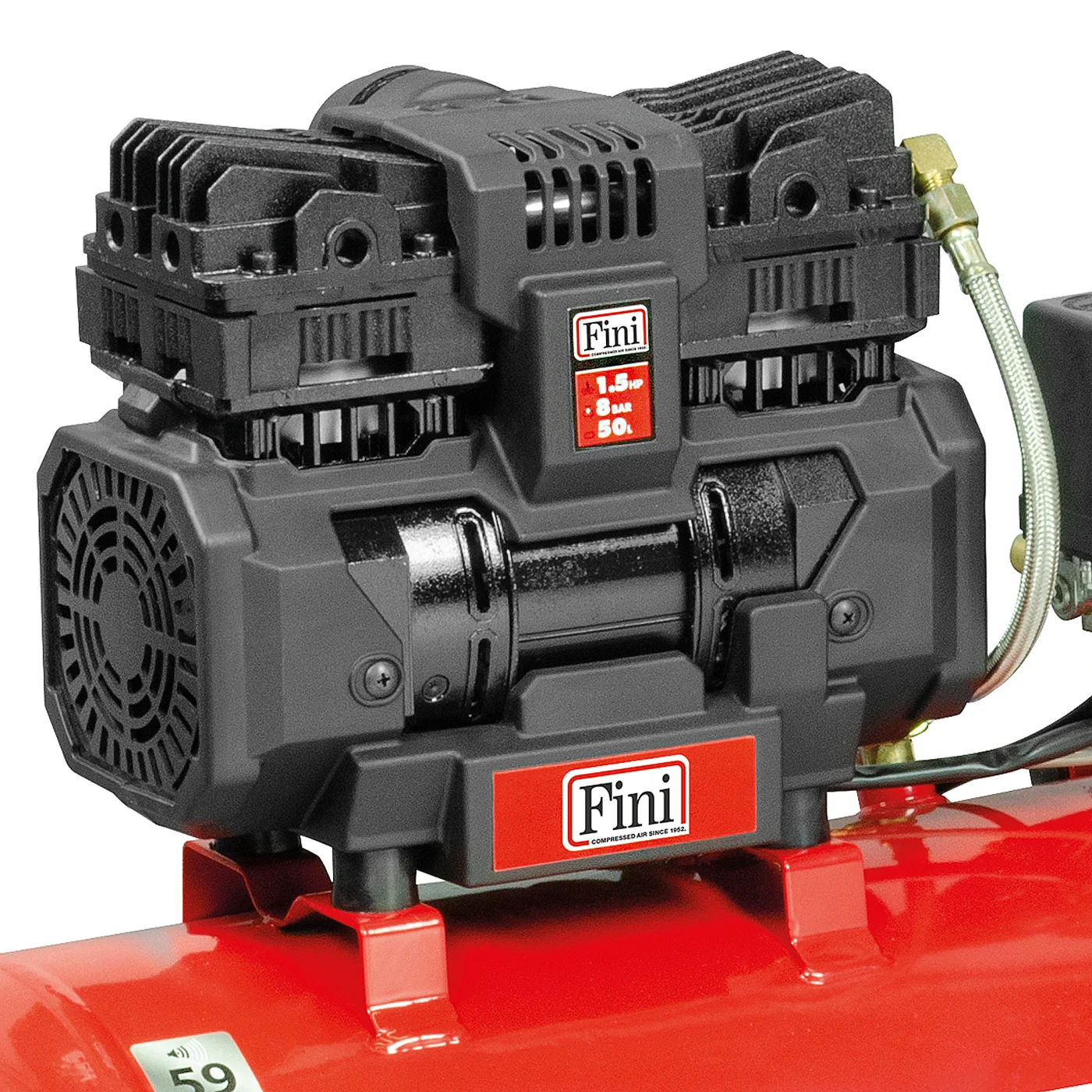

Compressor equipped with a very quiet, non-lubricated pumping unit, developed and designed to be used wherever you want. Ideal for all applications requiring low noise emissions. Large pressure gauges at the front of the 50-litre tank ensure easy reading. The solid full handle and large wheels ensure easy transportation. In addition, the fixed front double foot provides greater stability in use.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Compressor equipped with a very quiet, non-lubricated pumping unit, developed and designed to be used wherever you want. Ideal for all applications requiring low noise emissions. Large pressure gauges at the front of the 50-litre tank ensure easy reading. The solid full handle and large wheels ensure easy transportation. In addition, the fixed front double foot provides greater stability in use.
This model is suitable for the following uses:
Technical specifications
| Product code | B2DC304FNN558 |
|---|---|
| Lubrication | Oilless |
| Compressor pump | OL150TB |
| Air receiver (l) | 50 |
| Power | 1,5 Hp / 1,1 kW |
| Max. pressure | 8 bar / 116 p.s.i. |
| Sound level (dB(A)) * | 59 |
| Nr. of cylinders | 2 |
| Air displacement | 160 l/min. / 5,6 c.f.m. |
| R.P.M. | 1450 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 30 kg / 67 lb |
| Packaging dimensions LxWxH (mm) | 720x330x650 |
| EAN code | 8017750263021 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
