SuperTiger 4020M

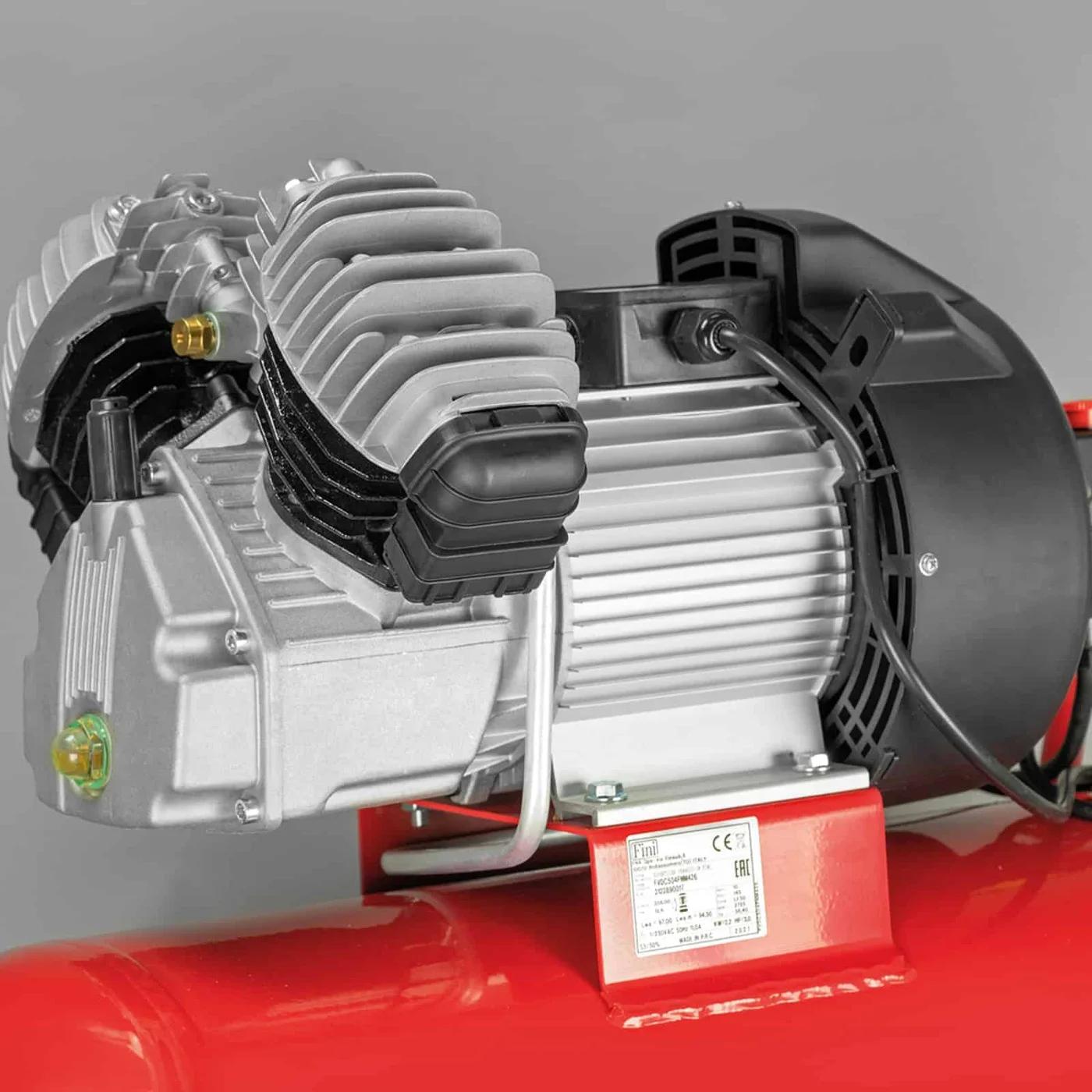

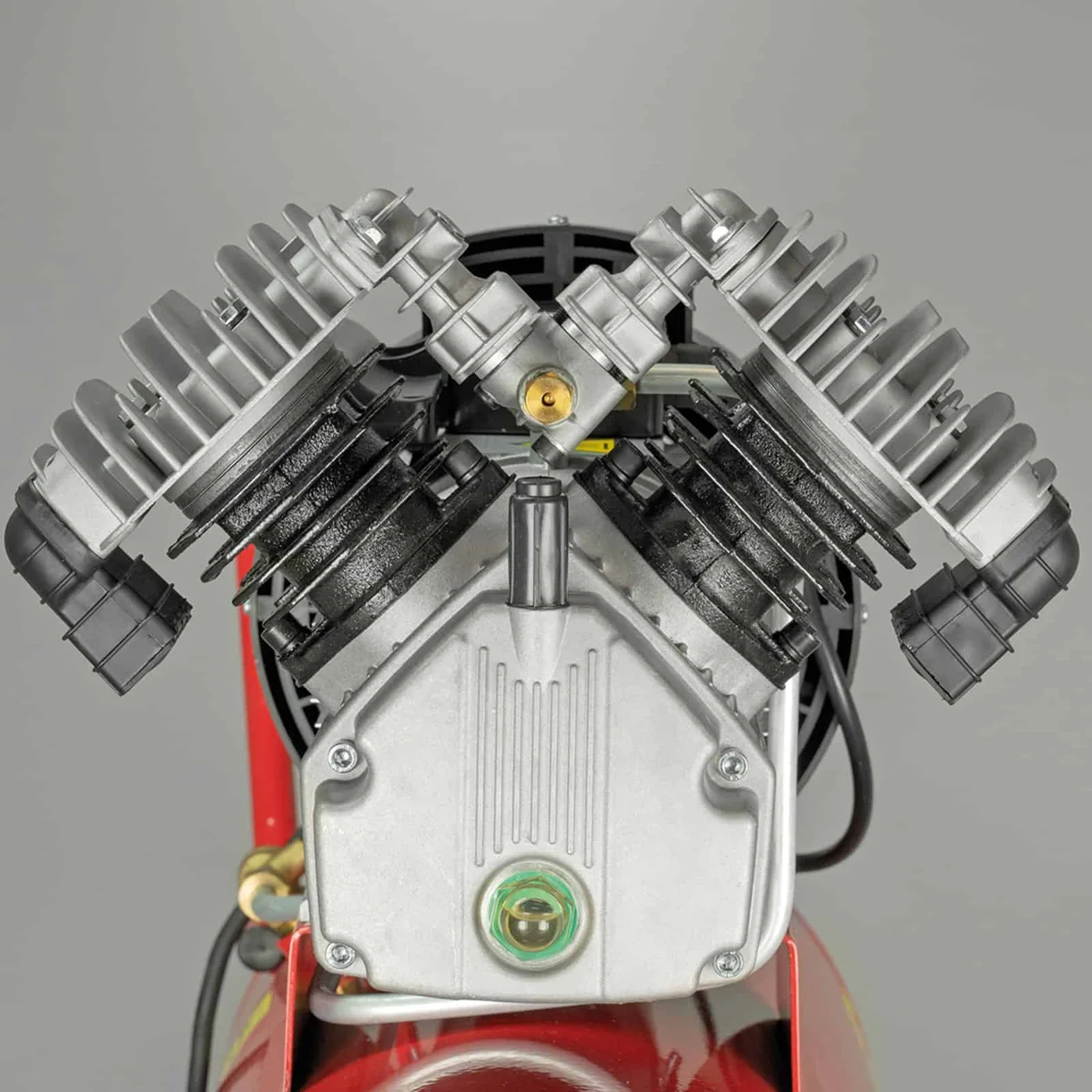

Two-cylinder, lubricated ‘V’ compressor, powerful and quiet, suitable for the demanding hobbyist and craftsman. Can be used with a wide range of pneumatic tools. Equipped with a 3 hp pumping unit with highly efficient cast iron cylinders. The 50-litre tank for a large air reserve with comfortable full handle, double wheels and double fixed foot guarantee greater stability and agile movements.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Two-cylinder, lubricated ‘V’ compressor, powerful and quiet, suitable for the demanding hobbyist and craftsman. Can be used with a wide range of pneumatic tools. Equipped with a 3 hp pumping unit with highly efficient cast iron cylinders. The 50-litre tank for a large air reserve with comfortable full handle, double wheels and double fixed foot guarantee greater stability and agile movements.
Technical specifications
| Product code | FVDC504FNM426 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | VKM4020 |
| Air receiver (l) | 50 |
| Power | 3 Hp / 2,2 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 2-V |
| Air displacement | 356 l/min. / 12,6 c.f.m. |
| R.P.M. | 2850 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 40,4 kg / 89,1 lb |
| Packaging dimensions LxWxH (mm) | 800x350x670 |
| EAN code | 8017750259970 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
