Tiger 285M

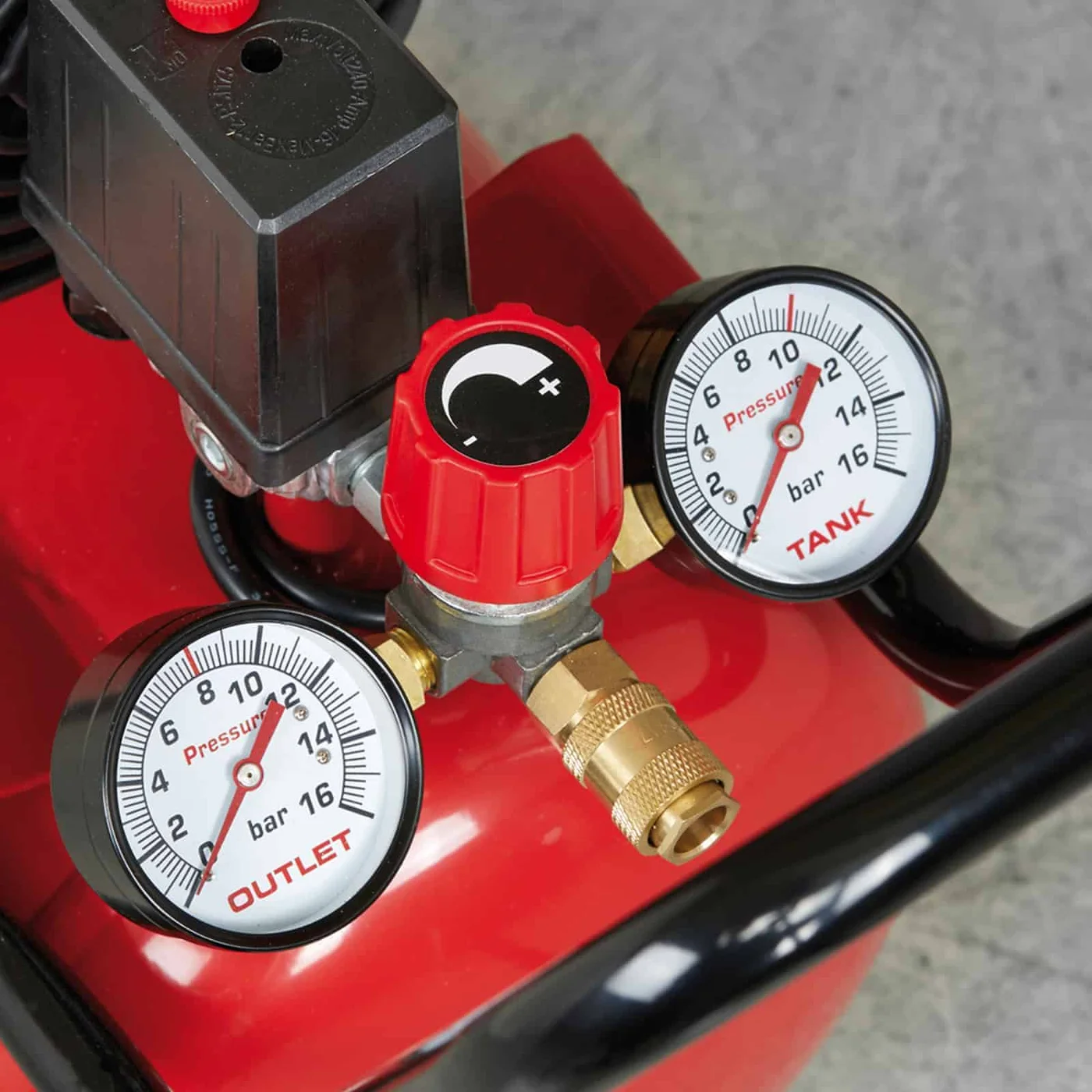

Versatile and easy-to-use lubricated coaxial compressor, the ideal tool for the demanding hobbyist. Equipped with an extremely reliable 2.5 hp pumping unit with a cast iron cylinder, aluminium casing and head and a robust plastic cover that channels air to cool the head. Large pressure gauges at the front of the 24-litre tank ensure easy reading. The solid full handle and large wheels ensure easy transportation.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Versatile and easy-to-use lubricated coaxial compressor, the ideal tool for the demanding hobbyist. Equipped with an extremely reliable 2.5 hp pumping unit with a cast iron cylinder, aluminium casing and head and a robust plastic cover that channels air to cool the head. Large pressure gauges at the front of the 24-litre tank ensure easy reading. The solid full handle and large wheels ensure easy transportation.
This model is suitable for the following uses:
Technical specifications
| Product code | FBCC4G4FNN506 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | MK285 |
| Air receiver (l) | 24 |
| Power | 2,5 Hp / 1,8 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 1 |
| Air displacement | 260 l/min. / 9,2 c.f.m. |
| R.P.M. | 2850 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 32 kg / 70,5 lb |
| Packaging dimensions LxWxH (mm) | 570x255x590 |
| EAN code | 8017750264189 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
