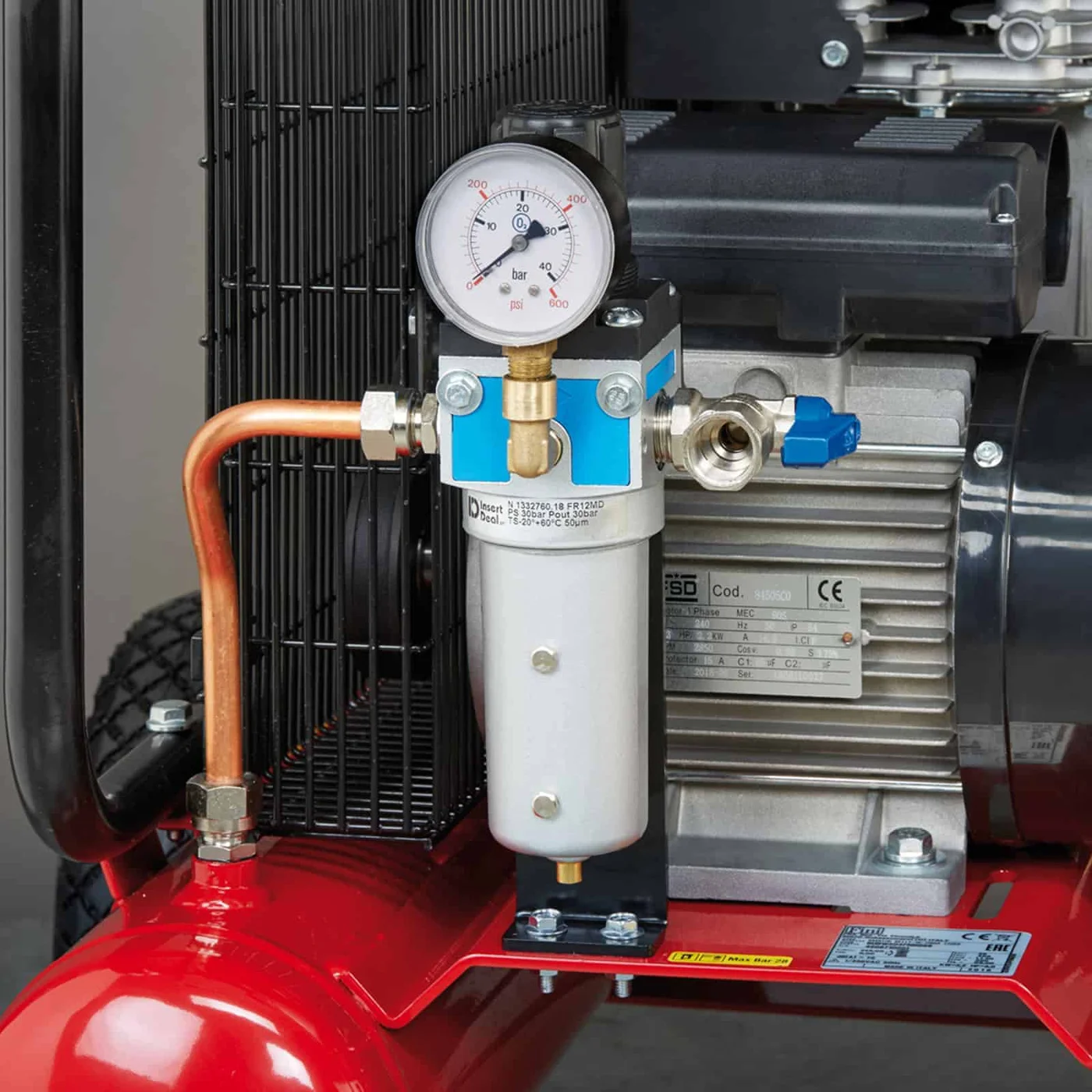

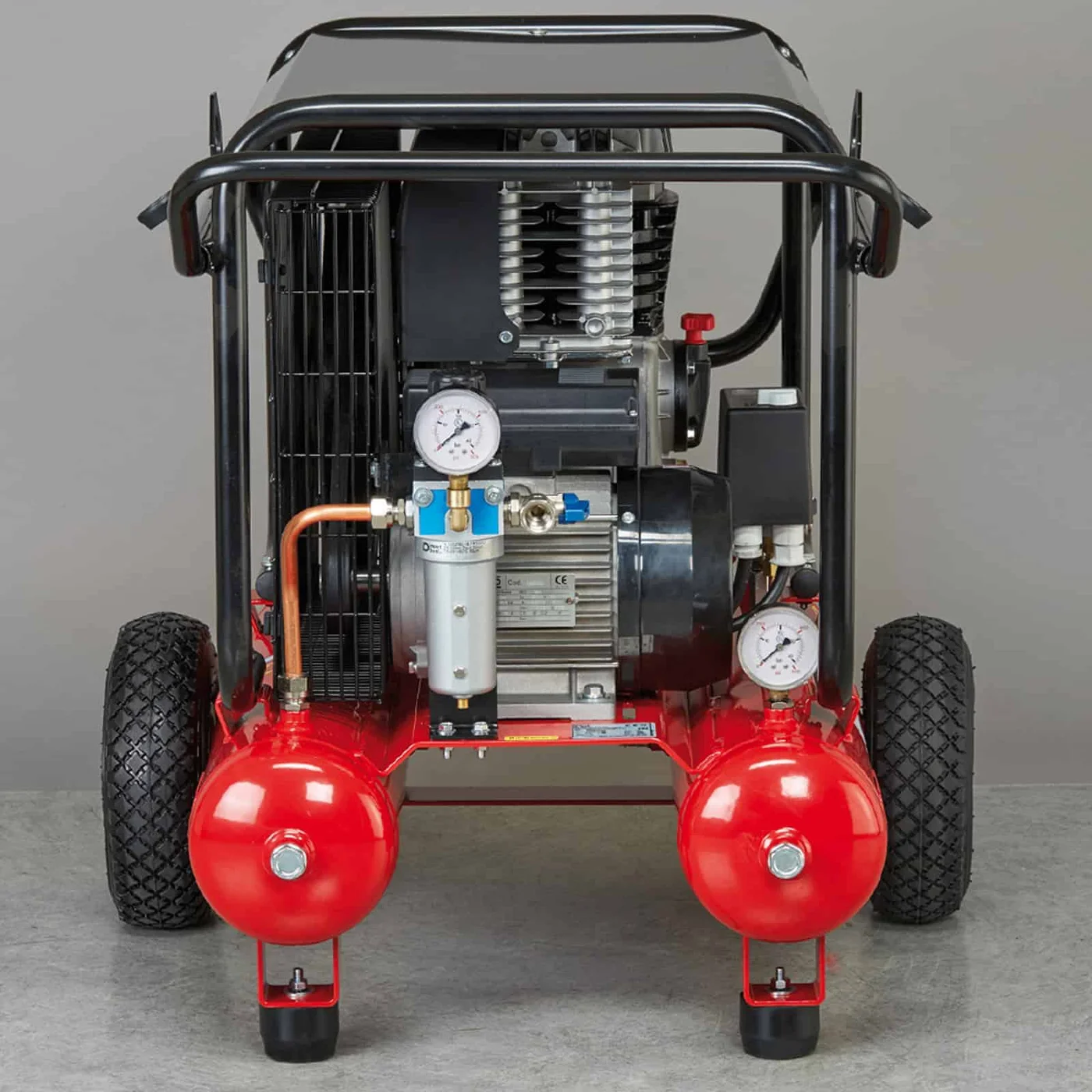

Warrior BK113-3M-A.P.-28
High-pressure two-stage belt compressor particularly suitable for car repair shops, tyre shops and professionals requiring working pressures up to 28 bar. The 3 hp pumping unit with highly efficient operation cast iron cylinders is fully protected by the robust and compact structure with two 10-litre tanks. The extendable handle and semi-inflatable wheels allow handling on any terrain.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
High-pressure two-stage belt compressor particularly suitable for car repair shops, tyre shops and professionals requiring working pressures up to 28 bar. The 3 hp pumping unit with highly efficient operation cast iron cylinders is fully protected by the robust and compact structure with two 10-litre tanks. The extendable handle and semi-inflatable wheels allow handling on any terrain.
Technical specifications
| Product code | BUBW504FNM866 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | BK113 |
| Air receiver (l) | 20 |
| Power | 3 Hp / 2,2 kW |
| Max. pressure | 28 bar / 406 p.s.i. |
| Nr. of cylinders | 2 |
| Air displacement | 225 l/min. / 8 c.f.m. |
| R.P.M. | 680 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 93 kg / 205 lb |
| Packaging dimensions LxWxH (mm) | 820x600x850 |
| EAN code | 8017750235011 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
