Big Pioneer MK312M

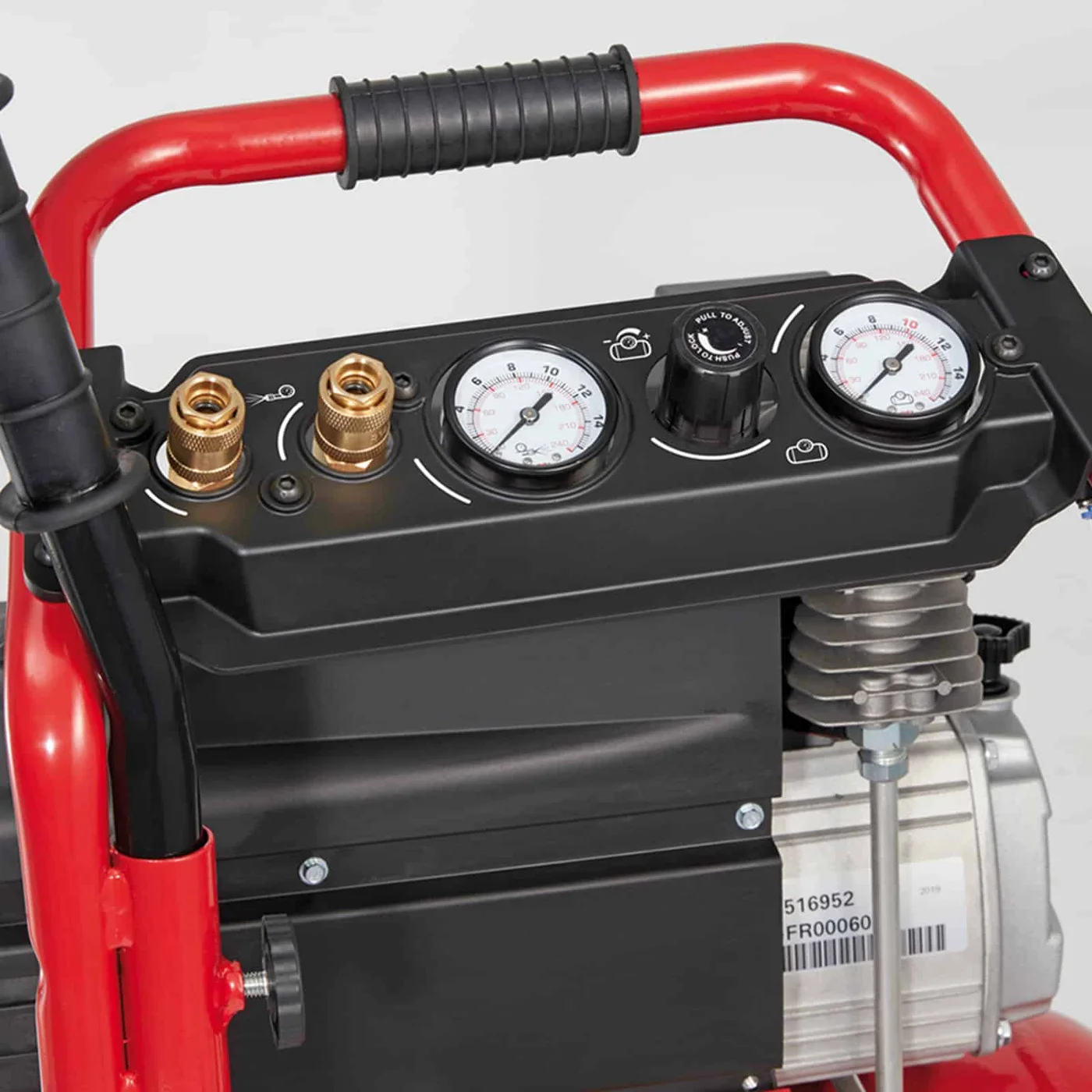

Lubricated coaxial compressor with cast iron cylinder, aluminium casing and head, and a robust plastic cover that conveys air to cool the head. Suitable for both the demanding hobbyist and for semi-professional use. The 3 hp pumping unit is fully protected by the steel structure with integrated 24 litre tank. The controls are centralised in the control panel for easy operation. The fixed handle integrated into the structure is suitable for transport either raised or pulled on wheels. The extendable handle allow for easy handling.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Lubricated coaxial compressor with cast iron cylinder, aluminium casing and head, and a robust plastic cover that conveys air to cool the head. Suitable for both the demanding hobbyist and for semi-professional use. The 3 hp pumping unit is fully protected by the steel structure with integrated 24 litre tank. The controls are centralised in the control panel for easy operation. The fixed handle integrated into the structure is suitable for transport either raised or pulled on wheels. The extendable handle allow for easy handling.
Technical specifications
| Product code | FRPB504FNN542 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | MK312 |
| Air receiver (l) | 24 |
| Power | 3 Hp / 2,2 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 1 |
| Air displacement | 284 l/min. / 10 c.f.m. |
| R.P.M. | 2850 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 40,6 kg / 89,5 lb |
| Packaging dimensions LxWxH (mm) | 560x445x735 |
| EAN code | 8017750264110 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
