Pioneer OL 232

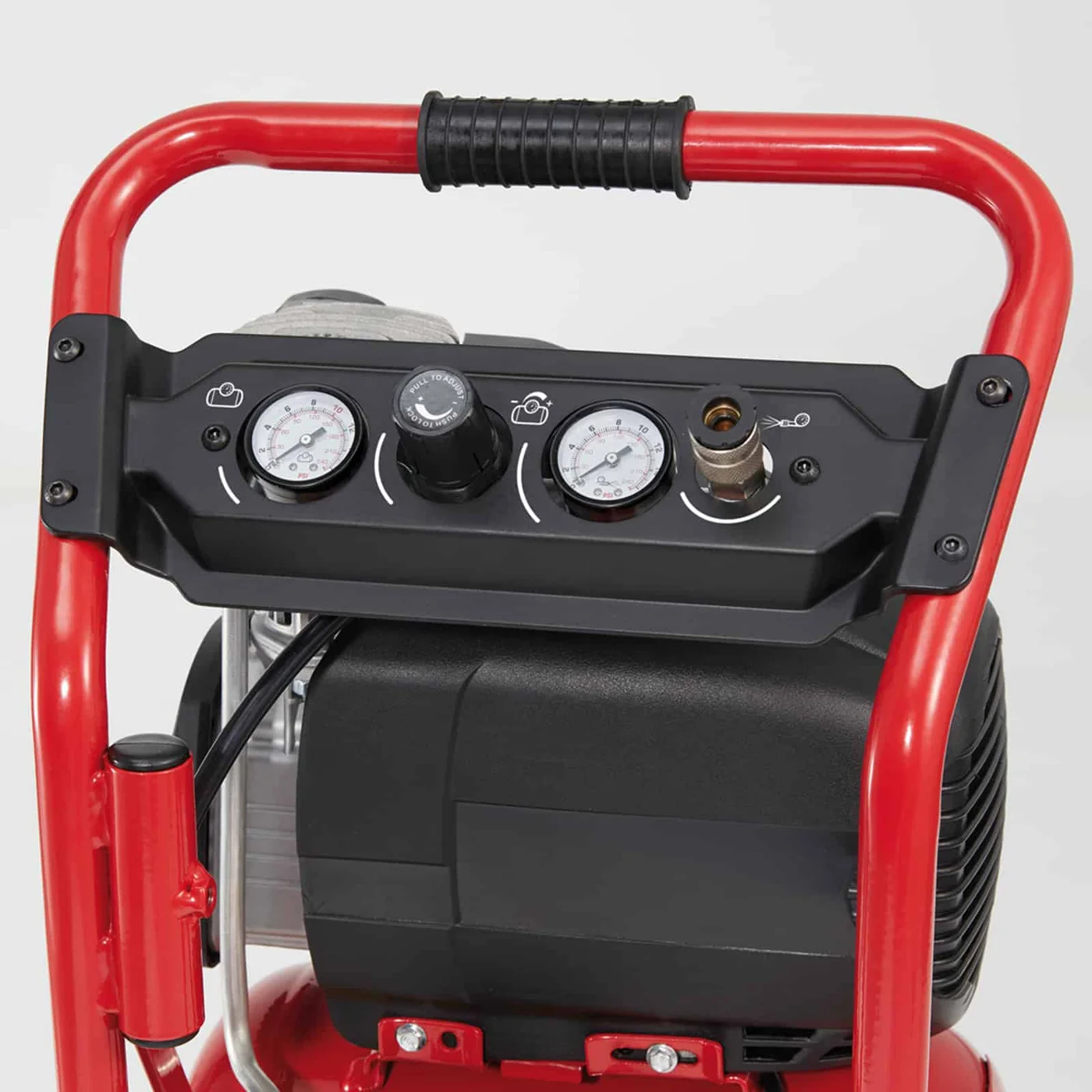

Maintenance-free, non-lubricated compressor. Practical for all hobby work. Equipped with a compact and space-saving 10-litre tank, all components are protected by the steel structure. The controls are centralised in the control panel for easy operation. The fixed handle integrated into the structure is suitable for transport either raised or pulled on wheels.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Maintenance-free, non-lubricated compressor. Practical for all hobby work. Equipped with a compact and space-saving 10-litre tank, all components are protected by the steel structure. The controls are centralised in the control panel for easy operation. The fixed handle integrated into the structure is suitable for transport either raised or pulled on wheels.
This model is suitable for the following uses:
Technical specifications
| Product code | FOPP404FNN538 |
|---|---|
| Lubrication | Oilless |
| Compressor pump | OL232 |
| Air receiver (l) | 10 |
| Power | 2 Hp / 1,5 kW |
| Max. pressure | 10 bar / 145 p.s.i. |
| Nr. of cylinders | 1 |
| Air displacement | 218 l/min. / 7,7 c.f.m. |
| R.P.M. | 2850 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 24 kg / 52,8 lb |
| Packaging dimensions LxWxH (mm) | 390x350x640 |
| EAN code | 8017750264080 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
Explore related models
Big Pioneer MK285M
Lubricated coaxial compressor with cast iron cylinder, aluminium casing and head, and a robust plastic cover that conveys air to cool the head. S
View specifications ↗
Energy 12
Maintenance-free, non-lubricated compressor. Perfect for home and small hobby jobs. Easy to transport thanks to the convenient handle incorporate
View specifications ↗
Shuttle 2500
Versatile and easy-to-use lubricated coaxial compressor for your hobbies. The 2 hp pumping unit is entirely protected by a tubular structure that
View specifications ↗
Shuttle 97/15
Versatile and easy-to-use lubricated coaxial compressor for your hobbies. The pumping unit is entirely protected by a tubular structure, which is
View specifications ↗Manuals and after-sales support
Request the manual for Pioneer OL 232 ↗. Add your serial number to the contact form. The team can request a nameplate photograph by email if needed.
Find this model’s manual · FSN genuine parts · After-sales support.
