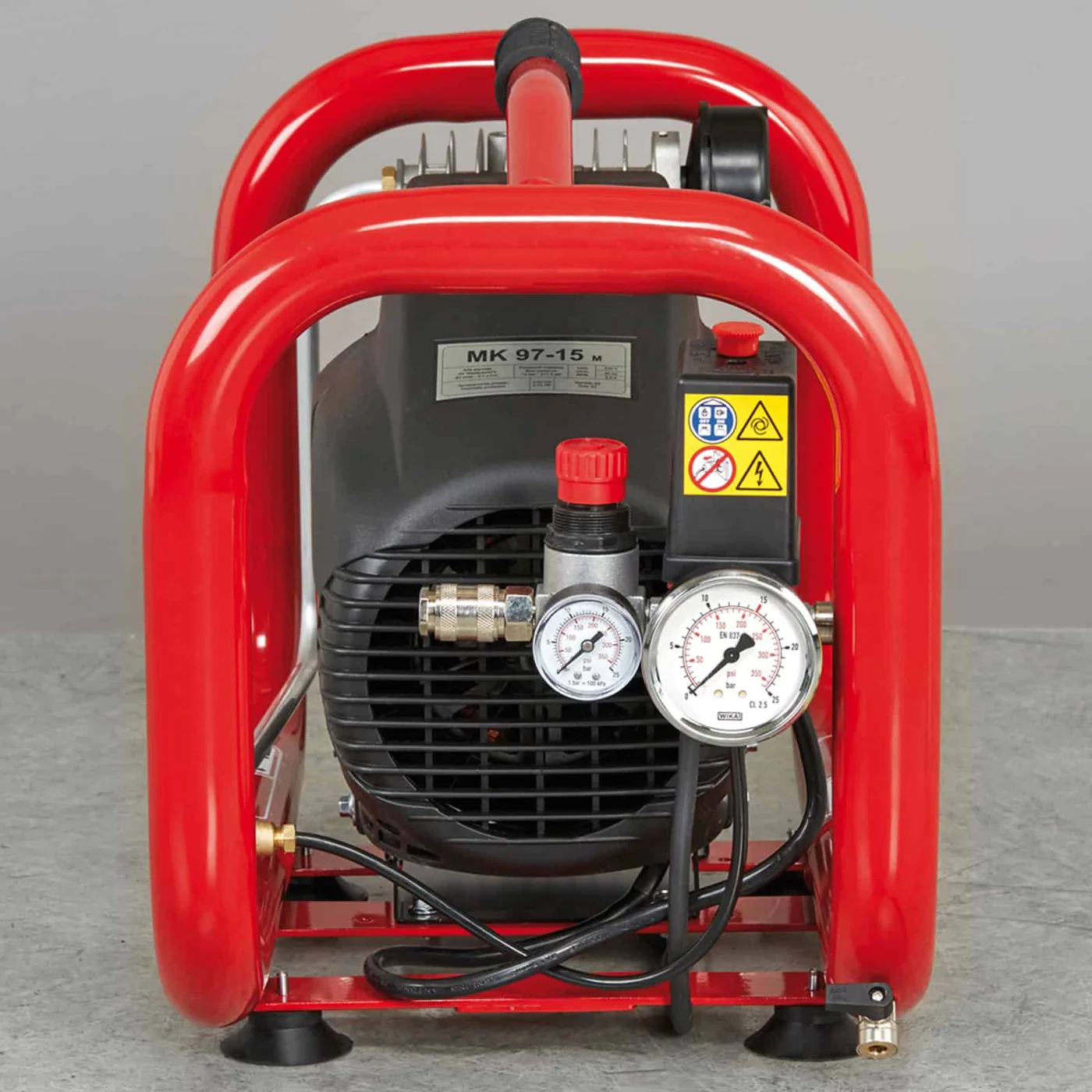

Shuttle 97/15
Versatile and easy-to-use lubricated coaxial compressor for your hobbies. The pumping unit is entirely protected by a tubular structure, which is the 2.4-litre tank. Lightweight and easy to carry thanks to the comfortable handle with rubber grip. The four suction cup feet ensure better stability when working.
Supply and support through The Titan Emporium in South Africa. Ask about delivery to your African destination. Price, stock, lead time and electrical configuration confirmed on quotation.
Model overview
Versatile and easy-to-use lubricated coaxial compressor for your hobbies. The pumping unit is entirely protected by a tubular structure, which is the 2.4-litre tank. Lightweight and easy to carry thanks to the comfortable handle with rubber grip. The four suction cup feet ensure better stability when working.
This model is suitable for the following uses:
Technical specifications
| Product code | FMAA104FNM136 |
|---|---|
| Lubrication | Lubricated |
| Compressor pump | MK97 |
| Air receiver (l) | 2,4 |
| Power | 0,75 Hp / 0,6 kW |
| Max. pressure | 15 bar / 217,5 p.s.i. |
| Nr. of cylinders | 1 |
| Air displacement | 87 l/min. / 3,1 c.f.m. |
| R.P.M. | 1420 |
| Voltage / Frequency (Volt / Hz) | 230/50 |
| Type motor | Electric |
| Gross weight | 22,5 kg / 49,6 lb |
| Packaging dimensions LxWxH (mm) | 560x320x430 |
| EAN code | 8017750220345 |
Manufacturer specifications. Air displacement and air outflow are different measurements; use the stated metric when sizing. Sound measurements and test conditions follow the manufacturer documentation. Verify voltage and frequency against your site supply.
Downloads
Manufacturer imagery is illustrative; supplied configuration is confirmed on quotation.
